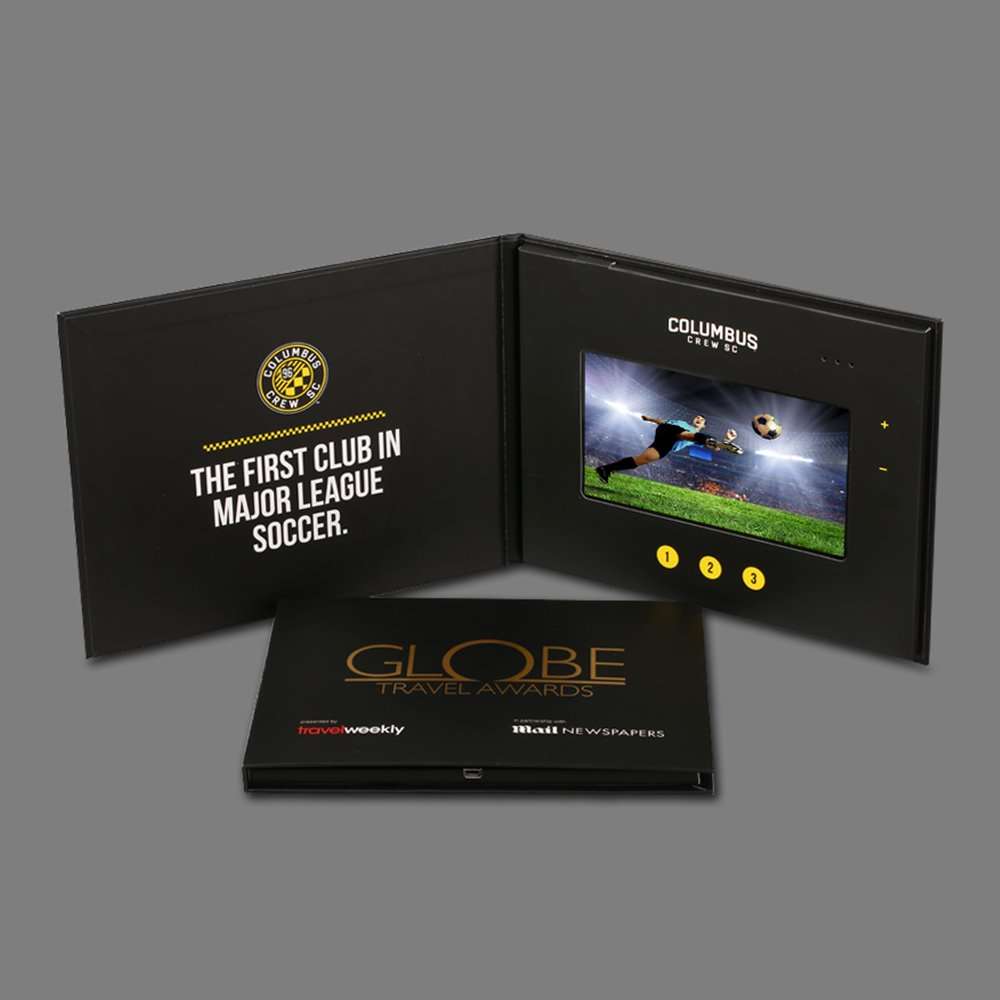

Custom LCD Video Book with IPS Screen and Buttons
FUNTEK is specialized in the production of innovative, high quality and tactile printed marketing tools like LCD video book. We utilise cutting-edge printing techniques, enabling us to create the unusual and you to communicate your message in a uniquely different way.
TV in a Card or Video Books may include individual video select buttons, such as play/pause, volume up, volume down, mute, next video, previous video, fast forward, rewind, replay, on/off and slide show (of images).Video brochures (sometimes referred to as video cards, TV in a card, or video packs) provide a powerful platform on which to deliver a full multi-media presentation.
By combining printed brochures with LCD screen technology, you can play and read your marketing message free of wires, internet access or security worries at any time and in any place.
Parameter information
| Item Name | Â Custom printed 7 inch IPS LCD screen video brochure for advertising |
| Supply Type | Â OEM/ODM |
| Display Size | Â 7 inch IPS screen, Optional 2.4 inch,4.3 inch,5 inch,10.1 inch |
| Video format | Â MP4,3GP, AVI MOV, ANI,ETC. |
| Picture format | Â BMP,JPG,JPEG,ETC. |
| Music format | Â MP3,WMA,PCM,ETC. |
| Power on/off | Â Light sensor, Magnet switch, motion sensor, push buttons |
| Paper Size | Â A4,A5 or customized size |
| Usage | Â Advertising Brand,Business Gift,Wedding Invitation,Brand promotion. |
| Product style | Â Aritifical |
| Video resolution | Â Â Hd video maximum 1920*1080 minimum 320*240. |
| Product categories | Â Â video brochure |
Screen accurate information
| Screen Size | Display Area | Screen Ratio | Resolution | Battery | Working time |
| 2.4 Inch TFT LCD Â Screen | 48mm*36mm | 4:3 | 320*240 | 320~24000mA | >=2hours |
| 4.3 Inch TFT LCD Â Screen | 94mm*53mm | 16:9 | 480*272 | 320~24000mA | >=2hours |
| 5 Inch TFT LCD Screen | 110mm*61mm | 16:9 | 480*272 | 320~24000mA | >=2hours |
| 5 Inch IPS Screen | 107mm*64mm | 16:9 | 800*480 | 320~24000mA | >=2hours |
| 7 Inch TFT LCD Â Screen | 152mm*85mm | 16:9 | 800*480 | 320~24000mA | >=2hours |
| 7 Inch IPS Screen | 152mm*85mm | 16:9 | 1024*600 | 320~24000mA | >=2hours |
| 10 Inch TFT LCD Â Screen | 221mm*124mm | 16:9 | 1024*600 | 320~24000mA | >=2hours |
Video Play:Â play can be activated by auto start on opening, on/off switch, light sensor, or, motion sensor.Up to 4 hours of video can be stored on a single brochure.
Memory and Video Play Time (estimate and guide only): 128Mb (up to 7min), 256Mb (up to 15min),512Mb (up to 30min), 1Gb (up to 60min), and so on *** Play time is subject to video compression and format used.
Battery capacity:Â Lithium Polymer rechargeable 500mAh with 1hour continuous playback. Higher capacity batteries up to 8000mAh are available upon request.
Buttons:Â on/off, video select, play/pause, next/FF, prev/REW, volume up, volume down. Up to maximum of 10 buttons are possible on a single video brochure.
Standby Screen (Splash): usually a company logo or product shot supplied as a JPEG which will display for 1-2 seconds whilst the video is booting up, referred to as Splash screen, or, the JPEG image can remain on standby until a video button is selected.
How do they work?
It’s pretty simple. You open the brochure, and your video plays at once. Each video card is capable of holding from 30 seconds up to 8 hours of video. You will be able to customize the size, color, shape, screen size, etc. The design of the brochure is completely up to you (or we can help you too!). Let your imagination go wild because we can handle any size/shape from a box to a folder or even a book!
Design custom LCD video book in different styles online for yourself or as a gift with no minimum order. Fast Shipping, Live Help, and No Minimums. Contact us today to get a free quote!
